Calculated attributes
This lesson introduces the concept of a calculated attribute and shows you how to create one. By completing this module, you will learn:
- What a calculated attribute is, and when it is useful to create one.
- How to define a calculated attribute by using the Value and Dependency properties.
- How to use the @ shorthand symbol in the Scheme expressions that define a calculated attribute.
Create a calculated attribute
All the class attributes that you have created so far have been assigned values that are persisted to the data store. Sometimes the value of an attribute is not explicitly assigned but is the result of an operation performed on other attributes. Attributes that obtain their values this way are called calculated attributes. Typically, the values of calculated attributes are not persisted.
Calculated attributes reduce storage redundancy by deriving values from information that has already been persisted. Since the values of calculated attributes are not persisted, they can reduce the size of your data store, and the number of commits that must be made to it. For example, if a model stores a person's date of birth, you can define their age as a calculated attribute using the birth date and the current date. Using this technique means that you do not have to separately persist an age attribute, or create logic to recalculate and repersist that value every time the person has a birthday.
Use calculated attributes when a value that you want to display or for other purposes can be computed from existing data in the business model. That existing data can be from the same business object instance, from its subcollections, or from any other relevant area. The data can also come from external web services or other integration channels.
Sometimes the calculation of an attribute's value is so complex that using a persisted value is a better choice in terms of the performance of your model. This is particularly true for calculations that require aggregation of massive amounts of data, or highly complex table joins. Persisted attributes might also be preferable if the value is repeatedly used by your application.
In this module, you add a calculated attribute called fullName
to each of the existing classes in your model. Each attribute is defined differently, so that each fullName
value is meaningful in the context of the class.
Add the fullName attribute to your model's classes
Use the class diagram to quickly add the attribute to the relevant classes.
To add the fullName
attribute to your model's classes:
- Open the
training:Fundamentals
class diagram (Business Model → Diagrams). - Right-click the
training:Entity
class and select Create Attribute. Edit the new attribute to read:
+ fullName : string [0..1]
This means the attributefullName
is a public (+) attribute of typestring
, is optional, and is not a collection (there can be zero or one instance of the attribute).- Add the attribute to the following additional classes in the diagram:
training:Person
training:Company
training:TelephoneNumber
training:EmailAddress
training:TelcomType
Do not add the attribute to the Telcom
class. You are defining the attribute differently in every one of training:Telcom's

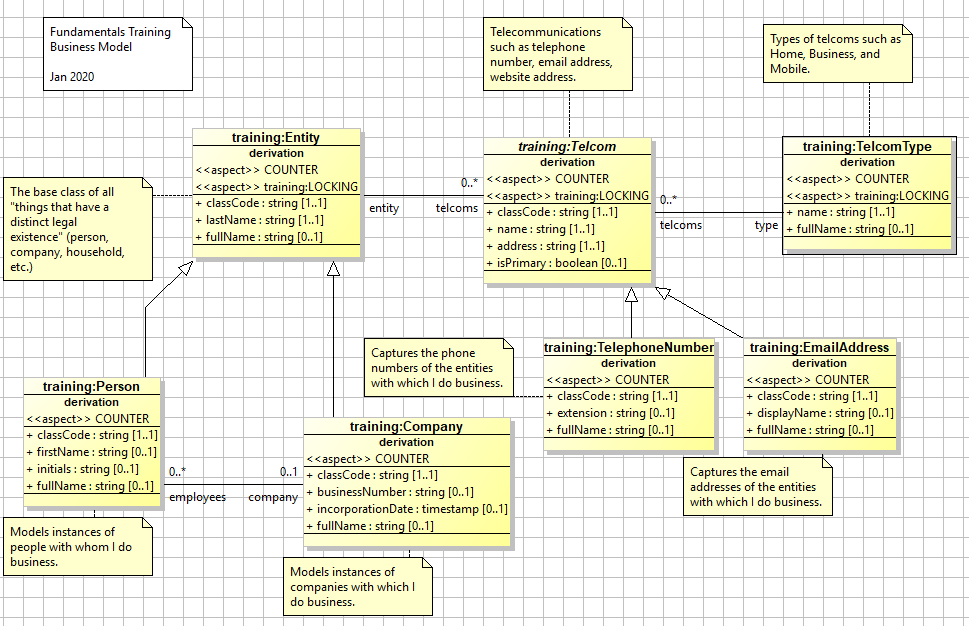

derived classes, so there is no gain from having the attribute defined in this abstract parent class. When you are done, your model diagram should resemble the following:
Set the value and dependency properties for the fullName attributes
To set the value and dependency properties for the fullName
attribute of the Entity
class:
- In the class diagram, right-click the
fullName
attribute of thetraining:Entity
class and select Go to Definition. This opens the class editor and takes you to the Attributes tab of thetraining:Entity
class, with thefullName
attribute selected. - In the Common sub-tab, set the Description to
The calculated full name for display
. - In the Value sub-tab - or in the value column in the attribute list, set the Value property to:
(format "Entity: {0}" (@ lastName))
Javascript
JSformat("Entity: {0}", this.lastName);
fullName
attribute for thetraining:Entity
class will be a string that reads “Entity: {0}”, where {0} is a variable that is substituted with the value of thelastName
attribute. For example, if an entity'slastName
attribute is “Turner”, then thefullName
attribute has a value of “Entity: Turner”. - Set the Dependency property to
lastName
. This indicates that the value of thefullName
attribute should be recalculated whenever thelastName
attribute changes. The Dependency property typically contains all the fields used to calculate the value of an attribute. - Update the value and dependency properties for the remaining classes, using the following values listed below.
training:PersonValue:
(format "Person: {0} - {1}" (string-affix (@ lastName) ", " (@ firstName)) (@ company fullName))
Javascript
JSformat("Person: {0} - {1}", #"string-affix"(this.lastName, ", ", this.firstName), this.company.fullName);
Dependency:
lastName firstName (company fullName)
Info
The value of the
fullName
attribute of thetraining:
Person
class refers to both its own simple attributes as well as thefullName
attribute of the associatedCompany
class. The attribute of the associated class is accessed through thecompany
complex attribute. This is a simple practical example of traversing the model through the associations set by the reverse property.
training:Company
- Value:
(format "Company: {0} (Business Number: {1}, Since: {2,date,yyyy})" (@ lastName) (@ businessNumber) (@ incorporationDate))
Javascript
JSformat("Company: {0} (Business Number: {1}, Since: {2,date,yyyy})", this.lastName, this.businessNumber, this.incorporationDate);
- Dependency:
lastName businessNumber incorporationDate
training:TelephoneNumber
- Value:
(format "Phone: {0}-{1} {2}" (@ name) (@ address) (@ extension))
Javascript
JSformat("Phone: {0}-{1} {2}", this.name, this.address, this.extension);
- Dependency:
name address extension
training:EmailAddress
- Value:
(format "Email: {0}-{1} ({2})" (@ name) (@ address) (@ displayName))
Javascript
JSformat("Email: {0}-{1} ({2})", this.name, this.address, this.displayName);
- Dependency:
name address displayName
training:TelecomType
- Value:
(format "TelcomType: {0}" (@ name))
Javascript
JSformat("TelcomType: {0}", this.name);
- Dependency:
name
6. Save your changes and validate the model by clicking the Validate Model button in the toolbar.
Info
The @
symbol in this context acts as a shorthand for accessing the current class instance. In javascript it is this and can be chained. In calculating the value of the fullName
attribute for an Entity, the (@ lastName
) gives the instruction to look first at the instance for which the fullName
value is being calculated, and then to get the value of the lastName
attribute from it. The @
notation can increase the legibility of a complex get instruction.
Compare:
(@ lastName
) is equivalent to (this'lastName
) and this.lastname in "js".
(@ company fullName
) is equivalent to ((this'company)'fullName
) and this.company.fullName in "js".
Test the model
- Start the Server Console with Debug logging enabled.
In a scratchpad addthe following script:
CODE; Test code for calculated attributes ; Create all of the training:Entities and training:Telcoms (define entity (training:Entity'new (: lastName "Thing4"))) (define comp (training:Company'new (: lastName "YourCo") (: businessNumber "BN-5678") (: incorporationDate (now)))) (define person (training:Person'new (: firstName "John") (: initials "X") (: lastName "Doe") (: company comp) (: primaryLanguage (training:LanguageEnum'get'ENGLISH)))) (define tp (training:TelcomType'new (: name "Business2"))) (define email (training:EmailAddress'new (: entity person) (: type tp) (: name (tp'name)) (: address "john.doe@nexj.com") (: displayName "John Doe"))) (define tel (training:TelephoneNumber'new (: type tp) (: name (tp'name)) (: address "(416) 555-1212") (: entity person) (: extension "x123"))) (commit) ; Loop over all the training:Entities and (polymorphically) print their ; fullNames (and their Telcoms) (define outString "") (for-each (lambda (e) (set! outString (string-append outString "\n" (e'fullName))) (for-each (lambda (t) (set! outString (string-append outString "\n -" (t'fullName))) ) (e'telcoms) ) ) (training:Entity'read '() '(in? lastName "Thing4" "YourCo" "Doe") '() '() '() '()) ) (logger'info "\n\nAll the fullnames are... \n" outString)
Javascript
JS; Test code for calculated attributes ; Create all of the training:Entities and training:Telcoms var entity = new #"training:Entity"({lastName: "Thing4"}); var comp = new #"training:Company"({lastName: "YourCo", businessNumber: "BN-5678", incorporationDate: now()}); var person = new #"training:Person"({firstName: "John", initials: "X", lastName: "Doe", company: comp, primaryLanguage: #"training:LanguageEnum".get.ENGLISH}); var tp = new #"training:TelcomType"({name: "Business2"}); var email = new #"training:EmailAddress"({entity: person, type: tp, name: tp.name, address: "john.doe@nexj.com", displayName: "John Doe"}); var tel = new #"training:TelephoneNumber"({type: tp, name: tp.name, address: "(416) 555-1212", entity: person, extension: "x123"}); commit() ; Loop over all the training:Entities and (polymorphically) print their ; fullNames (and their Telcoms) var outString = ""; #"for-each"( function (e) { outString = outString + "\n" + e.fullName; #"for-each"( function (t) { outString = outString + "\n -" + t.fullName; }, e.telcoms ); }, #"training:Entity".read(null, scm("'(in? lastName \"Thing4\" \"YourCo\" \"Doe\")"), null, null, null, null) ); logger.info("\n\nAll the fullnames are... \n", outString);
In brief, this code does the following:
It defines an entity called
Thing4
, a company calledYourCo
, and a person named JohnDoe
.It defines a business email and telephone number for John Doe.
It commits these values to the database.
It identifies all entities with a lastName value of
Thing4
,YourCo
, orDoe
.For each of the entities that it identifies, it adds to a string variable,
outString
, as follows:It reads in the entity.
It appends the entity's
fullNam
e value to theoutString
string.If the entity has any telcoms associated with it, then it appends the
fullName
values of those telcoms to the string.
It echoes the full contents of
outString
to the console as an information message.
Run the code. Your output should resemble the following:
CODEAll the fullnames are... Entity: Thing4 Company: YourCo (Business Number: BN-5678, Since: 2020) Person: Doe, John - Company: YourCo (Business Number: BN-5678, Since: 2020 2:16 PM) - Email: Business-john.doe@nexj.com (John Doe) - Phone: Business-(416) 555-1212 x123 ; #t
Update the revision and publish (optional)
This will take a while. Only do it if you want practice publishing. You did not make any changes to the database schema, so you do not need to make any changes to the upgrade file or the database. There is no need to change the model version.
You did make a change to the way the model operates, so you should update the model revision number. Updating the revision number indicates that you have changed the metadata structure of the model since its last “release.”
- Click the Validate model button in the toolbar to validate the model and ensure there are no errors.
- Click the Set current model button to open the Model Library.
- With the current model selected, click Edit.
- Update the Model Revision field by incrementing the final digit by one.
- Click OK.
- Click Publish. The Publish Model window opens.
- Select the directory that you want to publish your model to and click Save.
- Close the Model Library.
The console view provides a record of the actions taking place as NexJ Studio publishes the model. If the publish is successful, the message
BUILD SUCCESSFUL
appears.Info
If the model contains any warnings or errors, you are asked to confirm whether you want to continue publishing. In this course you can ignore warnings, but you must resolve any errors. To disable warnings, ensure checkbox found at Window → Preferences → NexJ Studio → Disable validation warnings is checked.
More about value behavior
In this module, you created a purely calculated attribute. The value of this attribute is never persisted to a data store.
The value of non-persisted attributes, such as the ones you defined in this module, is recalculated every time the object containing that attribute is requested. By contrast, the value of a persisted attribute is recalculated only when there is a change to the attributes identified in the Dependency property. However, both invalidate the value if dependent attributes change. This means that if the value is explicitly set and one of its dependent attributes change, then accessing the attribute again recalculates the value.
