Enabling and configuring REST API v2

Enabling REST API v2

To enable REST API v2, you need to add a mixin model to the project and update the environment file.

Including the restapi mixin model

Include the "RestV2 API Infrastructure" (restapi) model in your project. Do one of the following:

• Add the  <Mixin namespace="nexj:model:restapi" version="1+"/> parameter to the  <Mixins> tag in your environment file.
• In NexJ Studio, use Edit Mixin Models  dialog  to add the model to the project.

Updating environment attributes

The following attributes are related to the REST API.

Add this code to the Environment root element in your project environment file:

<Environment ... rest.configMetadata="CRMRestAPIConfig" rest.schemaBase="CRMSchemaBaseJSON" rest.version="1.0.0"... />

Updating environment channel connections

Three HTTP channel connections are required for using the REST API:

• OpenAPI
• REST
• SelectionOptions

To add these connections, include the following code in the environment file in your project.

   <ChannelConnections>
      <HTTPConnection channel="rest:OpenAPI"/>
      <HTTPConnection channel="rest:REST"/>
      <HTTPConnection channel="rest:SelectionOptions"/>
   </ChannelConnections>

Channel definitions in the restapi model are initialized with basic authentication. Project-specific authentication components should be specified in the channel connection settings in the project environment files.

Enabling single sign-on authentication

If your project already has single sign-on authentication configured then ignore this section.

REST API v2 requires the SSO dependency model for accessing user context in integration services. The dependency model itself is included in the application project, but you must configure the data source in your project environment.

Add the following code to the RelationalDatabaseConnection element in the environment file:  <DataSource name="sso:SSO"/>

Add the PKIKeyPair element below to the environment file in your project.

   <PKIKeyPairs>
      <PKIKeyPair keystore="<keystore>" name="nexjsa" password="text:<password>"/>
   </PKIKeyPairs>

For more information about PKI keys and enabling single sign-on authentication, see Configuring single sign-on and Adding PKI keys to an environment file.

Configuring REST API v2

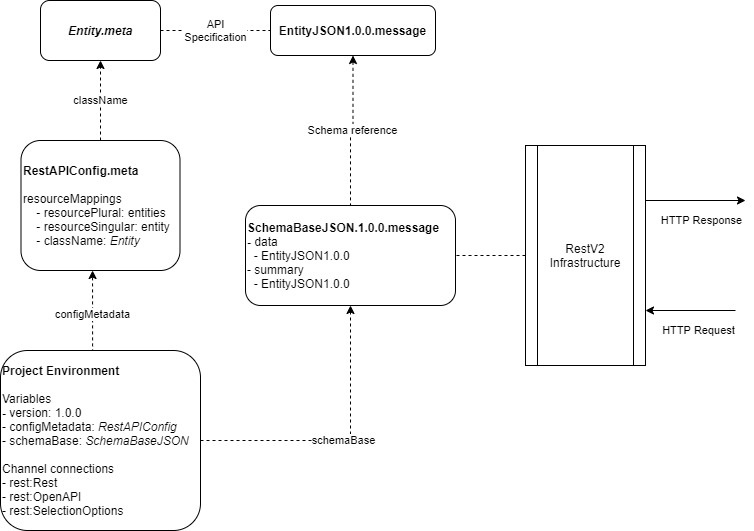

The following diagram demonstrates how the configurations are connected to provide the APIs. In this example, the Entity class requires an API specification.

Before you start, configure the environment file to initialize the environment attributes and channel connections and perform any necessary configurations to enable SSO.

1. Create the RestAPIConfig configuration class. This class is derived from the rest:BaseRestAPIConfig class defined in the "RestV2 API Infrastructure" (restapi) model. It contains the resource mappings for the Entity class.
2. Create the EntityJSON1.0.0 message to define the API specification for the Entity class.
3. Create the SchemaBaseJSON message as the schema base for the project. The schema base message is used by "RestV2 API Infrastructure" (restapi) model to provide API support for resources. The message references the EntityJSON1.0.0 message object.
4. Update the configMetadata and schemaBase attributes in the project environment file.

Creating a configuration class

Projects implementing REST APIs must create their own metadata class containing API configurations. This must derive from the rest:BaseRestAPIConfig class, which provides the template for available configurations.

The name of the configuration class must be specified in the project environment file using the rest.configMetadata environment variable.

The following configurations are available from the rest:BaseRestAPIConfig template:

The following example shows the inform:RestAPIConfig configuration class for the inform model.

--- inform:RestAPIConfig.meta ---
<Class base="rest:BaseRestAPIConfig">
	   <Attributes>
      		<Attribute description="Message defining info block for SwaggerUI." name="INFO_SWAGGER_UI" static="true" type="any" value="
	(message
   		(: version "1.0.0")
   		(: title "NexJ Inform")
   		(: description "RESTful API for NexJ Inform functionality")
	)"/>
   </Attributes>
   <Events>
      <Event name="getResourceNameMap" static="true">
         <Actions>
            <Action name="main" type="main"><![CDATA[(collection
   (message
      (: resourceSingular "interest")
      (: resourcePlural "interests")
      (: className "inform:Interest")
   )
)]]></Action>
         </Actions>
      </Event>
   </Events>
</Class>

You can now create API endpoints for resources will be exposed through REST API, map these resources to metadata classes, and configure classes for REST API v2 features.

Defining resource mapping event

Resource mappings are defined in the getResourceNameMap event in the metadata configuration class for the project.

Here is an example of a resource mapping for an Interest class, defined in inform:RestAPIConfig.meta:

<Class base="rest:BaseRestAPIConfig">
   <Events>
      <Event name="getResourceNameMap" static="true">
         <Actions>
            <Action name="main" type="main"><![CDATA[(collection
   (message
      (: resourceSingular "interest")
      (: resourcePlural "interests")
      (: className "inform:Interest")
   )
)]]></Action>
         </Actions>
      </Event>
   </Events>
</Class>

Available properties for the resource mappings are the following:

Creating JSON resource messages

The JSON resource message for a class defines the class attributes that are accessible using REST APIs.

JSON resource messages must follow the following naming convention: {ClassName}{Format}.{Version}. This naming convention is required to construct responses with correct class, for the correct version, and with the correct format. The type for all values must be set to string.

For example, a resource message for the Interest class is called InterestJSON.1.0.0.

<Message format="JSON">
   <Parts>
      <Value description="Unique ID of the object." name="id" type="string"/>
      <Value description="Related object associated with this instance." name="relatedObjectId" type="string"/>
      <Value description="Value used to retrieve list of associated articles." name="value" type="string"/>
   </Parts>
</Message>

Creating a schema base mapping message

In addition to creating resources messages, you must define message parts in the relevant schema base message.

The schema base mappings are a snapshot of the available resources using API. It is required so that projects can have independent API resources without having to customize schema for base projects. For example, a client project can have its own schema base, which is different from the base project and is maintained independently. This is also useful for testing. Projects can have a separate schema for testing, by setting the schema base at runtime in a unit test, which are not exposed publicly.

The schema base message has to follow the naming convention {rest.schemaBase}{format}.{rest.version}. The schema base message is defined in the rest.schemaBase environment attribute.

Each resource has a detail definition and a summary definition in the schema base message.

• Detail objects reference the resource message definition for a class. They have access to all attributes that are exposed in the resource message.
• Summary objects are a minimal version of the message definition that is accessible for read queries. To optimize read queries, collection associations that require joins (for example, participants) are not usually included in a summary object.

The example below is taken from the ObjectSnapshotJSON.1.0.0 schema base message.

<Message description="Message structure for Snapshot manager. This is intended for defining RESTv2 schema. This message metadata does not rely on NexJ framework for parsing or formatting" format="JSON">
   <Parts>
      <Message description="Detail reads" name="data">
         <Parts>
            <Message maxCount="0" name="Interest" ref="InformJSON.1.0.0"/>
			...
         </Parts>
      </Message>
      <Message description="Message schemas for collection GET queries. Intended to support complex export behaviors with calculated attributes, without impacting Create/Update behaviors" name="summary">
         <Parts>
            <Message maxCount="0" name="Inform">
               <Parts>
                  <Value description="Unique ID of the object." name="id" type="string"/>
                  <Value description="Related object associated with this instance." name="relatedObjectId" type="string"/>
                  <Value description="Value used to retrieve list of associated articles." name="value" type="string"/>
               </Parts>
            </Message>
           	...
         </Parts>
      </Message>
   </Parts>
</Message>

Configuring metadata classes to use REST API v2

You need to configure metadata classes to enable them to use various REST API v2 features.

The following class properties must be set:

• nameAttribute
• caption

They are used for informative error handling and constructing user-friendly responses.

Configuring class attributes

For constructing user-friendly responses conforming to OpenAPI standards, you can configure class attributes using the facets defined in the rest:SubType.facets file. Depending on the attribute type, the configuration may be required.

The following facets are available for the timestamp attribute type:

When you add any timestamp attribute which includes timezones, you also need to add a string attribute named "unit_<attributeName>".

This is an example of a class configuration with SubType facets for timestamp attributes.

<Class caption="rest.TestObjectSnapshot.caption" nameAttribute="name">
   <Attributes>
      <Attribute description="Name attribute for class." name="name" type="string"/>
      <Attribute description="Attribute with "DATETIME_WITH_TIMEZONE" SubType facet." facets="(SubType (DATETIME_WITH_TIMEZONE))" name="datetimeWithTimeZone" type="timestamp"/>
      <Attribute description="Attribute with "DATE_WITH_TIMEZONE" SubType facet." facets="(SubType (DATE_WITH_TIMEZONE))" name="dateWithTimeZone" type="timestamp"/>
      <Attribute description="Attribute with "PURE_DATE" SubType facet." facets="(SubType (PURE_DATE))" name="pureDate" type="timestamp"/>
      <Attribute description="Attribute with "UTC_DATETIME" SubType facet." facets="(SubType (UTC_DATETIME))" name="datetimeUTC" type="timestamp"/>
      <Attribute description="Unit for dateTimeWithTimeZone attribute." name="unit_datetimeWithTimeZone" type="string" value=""UTC""/>
      <Attribute description="Unit for dateWithTimeZone attribute." name="unit_dateWithTimeZone" type="string" value=""UTC""/>
		...
   </Attributes>
   ...
</Class>

Configuring the ALTERNATE_KEY aspect

The ALTERNATE_KEY aspect can be implemented by a class to enable lookup using an alternate unique attribute instead of OID. This is used for classes such as User, which have unique user names.

Instances of classes implementing this aspect inherit uniqueness validation by the alternate key for create and update commands.

The following inherited attributes are configurable for this aspect.

This is an example configuration of the ALTERNATE_KEY aspect in a TestObjectSnapshotTemplate class:

<Class aspects="rest:ALTERNATE_KEY" caption="rest.TestObjectSnapshotTemplate.caption" nameAttribute="title">
   <Attributes>
      <Attribute description="Name attribute of class." name="title" type="string"/>
      <Attribute description="Attribute used as alternate key." name="API_KEY" static="true" type="any" value="'(@ title)"/>
      <Attribute description="Description of alternate key." name="API_KEY_DESCRIPTION" static="true" type="string" value=""api.TestObjectSnapshotTemplate.keyDescription""/>
		...
   </Attributes>
	...
</Class>

This is an example of a GET request and response for a TestObjectSnapshotTemplate instance with title "TestTemplate1":

Request:
<Base URL>/channel/<API Channel>/testObjectSnapshotTemplates/TestTemplate1

Response:
{
   "$commit-hash": 256141559,
   "title": "TestTemplate1"
}

Configuring the TEMPLATE aspect

The TEMPLATE aspect is used to simplify assignment of template classes when using the selection options API. For example, when requesting selection options for an activity template, all properties of the template may not be important and only  the value and caption may be required for the purpose. This is what the TEMPLATE aspect provides.

The following inherited attributes are configurable from this aspect:

TEMPLATE aspect configuration example

In this example, the TestObjectSnapshot class has an association to the TestObjectSnapshotTemplate class.

With this configuration, a response with TestObjectSnapshotTemplate instances is returned when TestObjectSnapshot'template is requested using selection options. Note that the response messages only contains caption and value properties provided by the TEMPLATE aspect.

This is an example configuration of TEMPLATE aspect in a TestObjectSnapshotTemplate class:

--- TestObjectSnapshot.meta ---
<Class caption="rest.TestObjectSnapshot.caption" nameAttribute="name">
    <Attribute description="Association implementing rest:Template aspect." name="template" type="rest:TestObjectSnapshotTemplate"/>
	...
</Class>

--- TestObjectSnapshotTemplate.meta ---
<Class aspects="rest:TEMPLATE" caption="rest.TestObjectSnapshotTemplate.caption" nameAttribute="title">
   <Attributes>
      <Attribute description="Value used for template." name="value" type="string" value="(@ title)"/>
      <Attribute description="Name attribute of class." name="title" type="string"/>
		...
   </Attributes>
	...
</Class>

This is an example of a request using selection options to get the templates for a TestObjectSnapshot class:

Request:
<Base URL>/channel/<Selection options Channel>/testObjectSnapshots/template

Response:
{
   "options": [
      {
         "sortOrder": 0,
         "value": "TestTemplate1",
      },
      {
         "sortOrder": 1,
         "value": "TestTemplate2",
      }
   ]
}

Schema inheritance from a parent class

An API resource can inherit a schema without further schema configuration if the parent class already has a schema definition. This is to minimize configurations for subclasses when a schema definition already exists for the parent class. For example, in the following resource mappings the "persons" API will inherit the schema from "entities" since the Entity class is the immediate parent of the Person class.

Schema definitions of entity:
<Message format="JSON">
   <Parts>
      <Value name="id" type="string"/>
      <Value name="lastName" type="string"/>
   </Parts>
</Message>

Resource mappings:
   (message
      (: resourceSingular "entity")
      (: resourcePlural "entities")
      (: className "Entity")
   )
   (message
      (: resourceSingular "person")
      (: resourcePlural "persons")
      (: className "Person")
   )

Because of this behavior, developers must pay attention to the order of schema definitions in the base schema, so that base classes are defined sequentially after the sub-classes, when a different schema exists for both the parent class and child class.

Configuring APIs for mixins and parent projects

REST API v2 infrastructure does not automatically publish APIs from mixins or parent projects. If you want to expose APIs for models imported from a mixin or parent project, you must define them explicitly as part of the API specification. This prevents projects from exposing unintended APIs externally.

In order to expose an API for an imported model that already has an API specification message defined, you must do the following:

• Add a resource mapping to the configuration class.
• Add an entry in the schema base message for the project, referencing the specification message for the model.

In the example below, the inform:Interest class is imported from the inform mixin model.

• The first section updates the getMapResourceNames event of the ExampleRestAPIConfig configuration class to include "interests" as a resource mapping.
• The second section updates the ExampleSchemaBaseJSON schema base message for the project to include references to the inform:schema:InterestJSON.1.0.0 message, where the inform:schema:InterestJSON.1.0.0 message is imported from the inform model.

----- ExampleRestAPIConfig.meta --------
<Class base="rest:BaseRestAPIConfig">
   <Events>
      <Event description="Returns a collection of resource mappings for the finance project." name="getMapResourceNames" static="true">
         <Actions>
            <Action name="main" type="main"><![CDATA[(collection
	...
   (message
      (: resourceSingular "interest")
      (: resourcePlural "interests")
      (: className "inform:Interest")
   )
)]]></Action>
         </Actions>
      </Event>
   </Events>
</Class>

----- ExampleSchemaBaseJSON.message ------
<Message description="Message structure for classes supported by RestV2 resources" format="JSON">
   <Parts>
      <Message description="Detail reads" name="data">
         <Parts>
            ...
            <Message maxCount="0" name="inform:Interest" ref="inform:schema:InterestJSON.1.0.0"/>
         </Parts>
      </Message>
      <Message description="Message schemas for collection GET queries. Intended to support complex export behaviors with calculated attributes, without impacting Create/Update behaviors" name="summary">
         <Parts>
 			...
            <Message maxCount="0" name="inform:Interest" ref="inform:schema:InterestJSON.1.0.0"/>
         </Parts>
      </Message>
   </Parts>
</Message>

Example REST API links

The table below illustrates example REST API links.
